SPECIFICATIONS
Model
C275P
Dimensions
333*275*323mm(13.11*10.83*12.72inch)
Motherboards
ITX
Max VGA Length
325mm
Max CPU Cooler Height
155mm
Max PSU Length
140mm

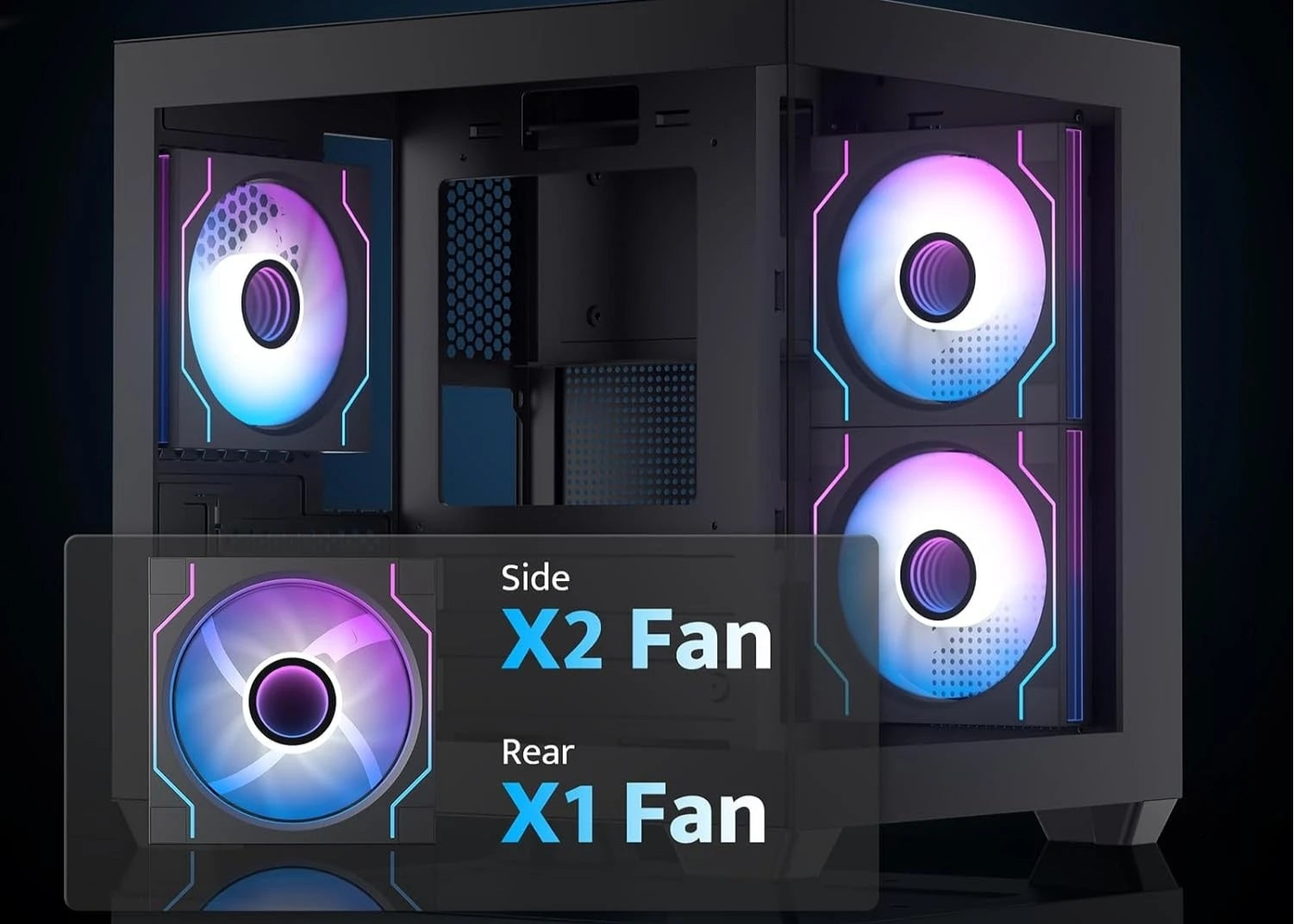

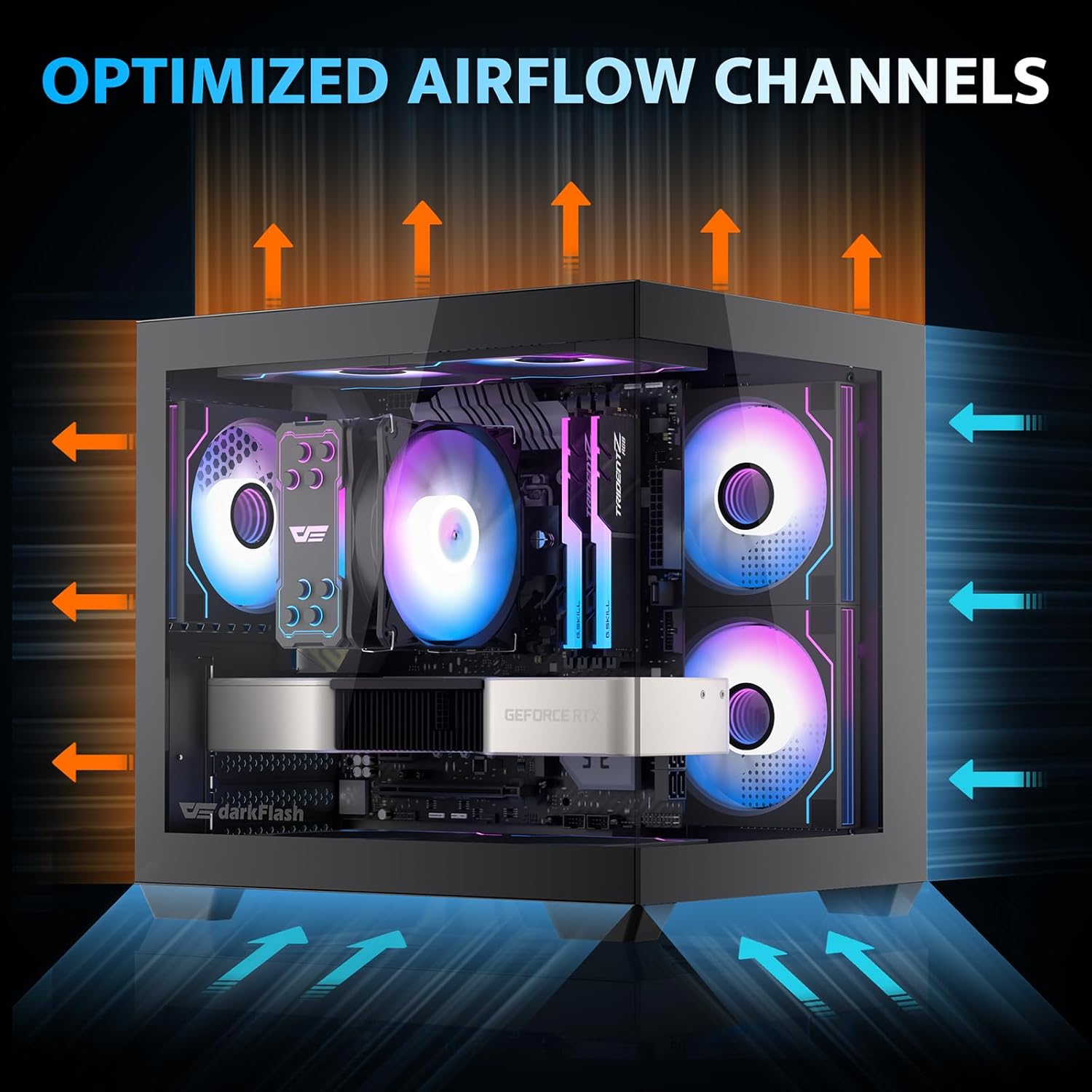

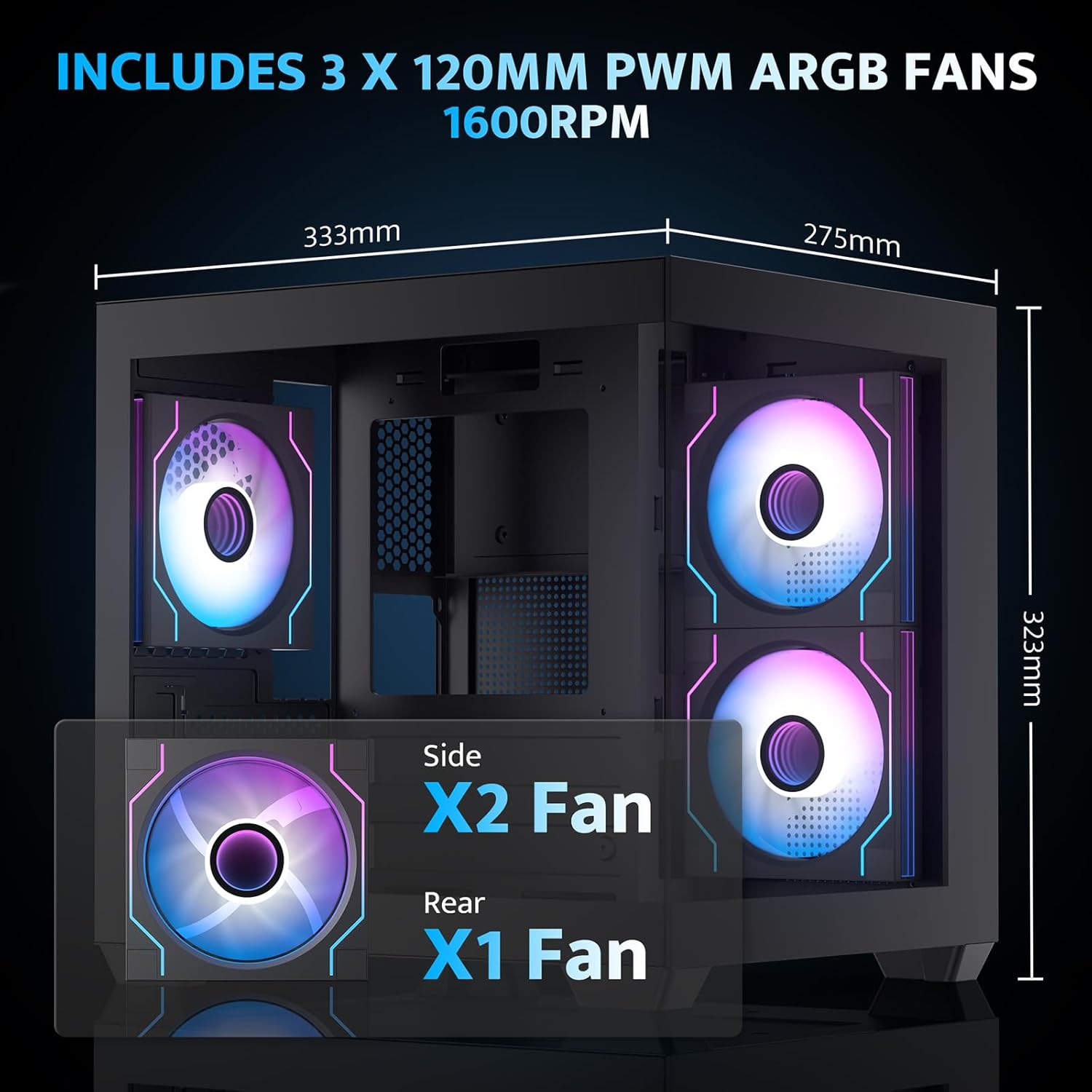

Fan Support
Rear: 120mm x 1/bottom: 120mm x 2/Top: 120mm x 2/Side: 120mm x 2

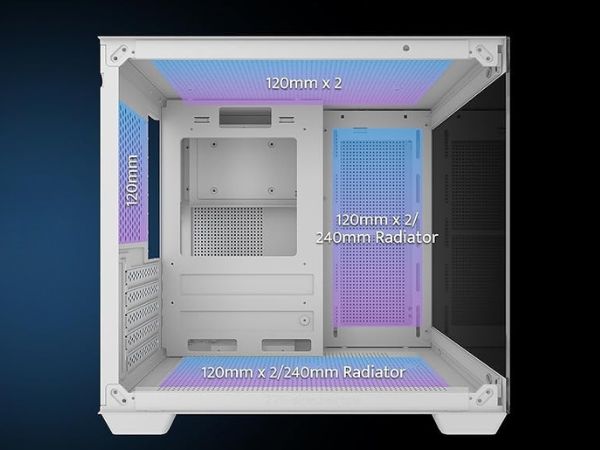

Radiator System
Bottom/Side : 240mm Radiator

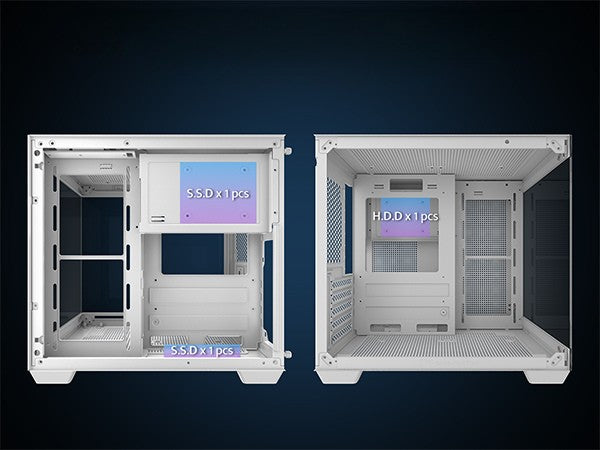

HDD /SSD
SSD*2/HDD*1
Expansion Slots
5 Slots

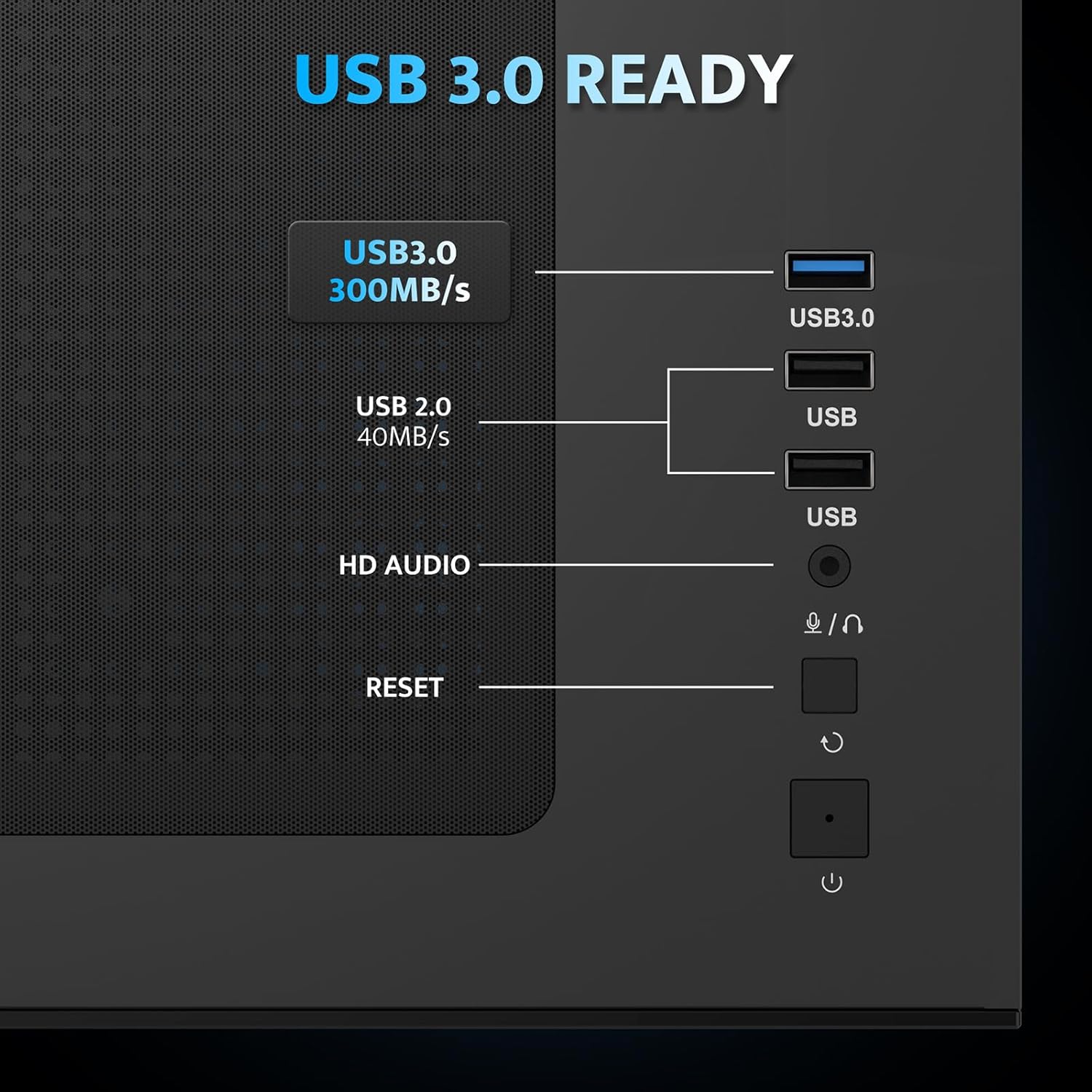

l/O(Type-c Edition)
USB 3.0*1/ USB2.0*2 / HD Audio/Power/Reset
Frequently Asked Questions

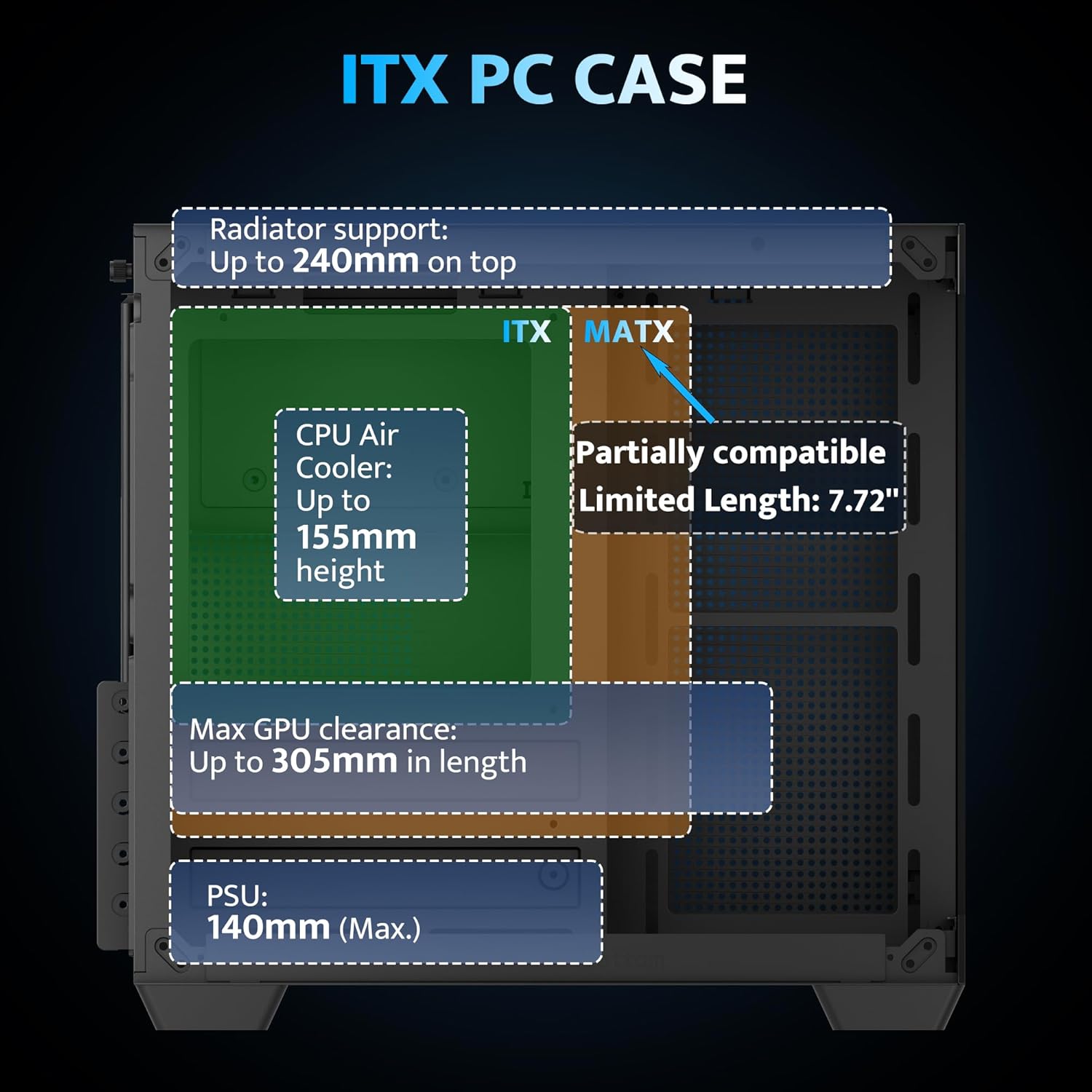

Is this C275P case compatible with MATX motherboards?
Is this C275P case compatible with MATX motherboards?
Please note that it is only compatible with some MATX motherboards. The maximum motherboard size that can be accommodated is: 8.78 x7.72 inches
What is the maximum length for the graphics card?
What is the maximum length for the graphics card?
The case supports a maximum graphics card length of 325mm.

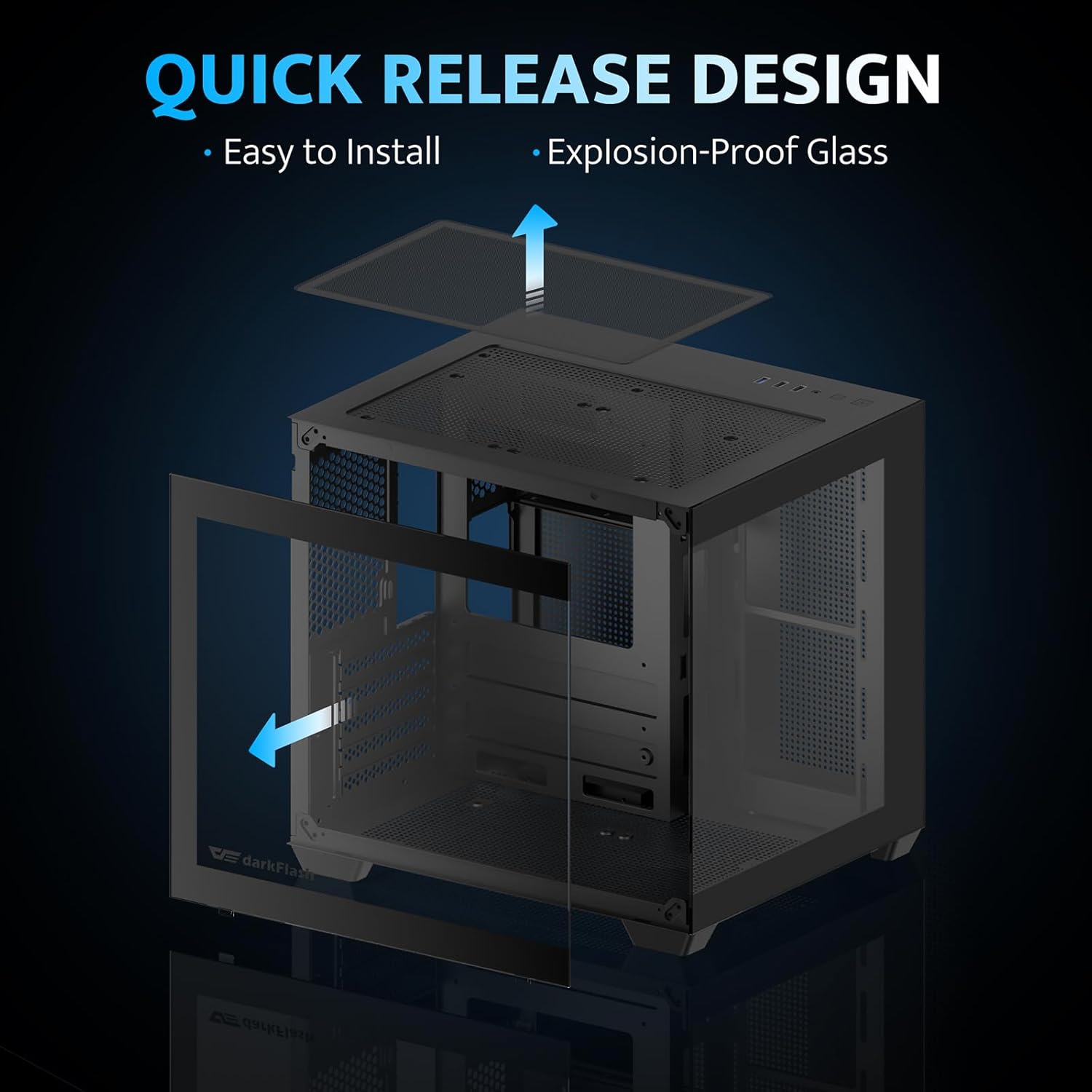

Is installation and removal easy?
Is installation and removal easy?
Yes, the case features a mortise and tenon quick-release structure for easy installation and removal.
Customer Reviews
beautiful case
The media could not be loaded.
Perfect pc case. Looks nice and not bad really good for my needs like portability, size and amount of aesthics/RGB!🤩👌👍
Full disclosure, I received this item as part of Amazon's Vine Program in exchange for an honest review, good or bad. This is probably my 20th PC build but my first build that wasn't on a full size case. For the most part it went ok, but there were times when the case felt so small, I thought I was building a ship in a bottle. Don't get me wrong, this is a good case and very well built. It has all the features you could want, except not enough hard drive bays.It says it has room for one 3.5 inch hard drive and had a very bad drawing the sort of showed a picture where it was supposed to go, but I could never figure it out. Also, make sure you but a modular power supply. I cheaped out and bought a standard power supply. As a result, there are a lot of cables I'm not using. It was extremely difficult to get all of them shoved into the little pocket in meant for the extra cables in the back of the case. They kept hitting the fans or getting pinched in the door when I tried to close it. FYI, at first, I bought a miniature modular power supply but it would not fit. Only a full size power supply fits this case. Like I said, it was my first time with a small form factor case.The front IO works great and was easy to setup. I would recommend this case to anyone who doesn't need a lot of storage space. My RTX 2020 fits fine though, so if you want to make a gaming pc with it, it will work great for it as long as you don't go too crazy with your graphics card.
Perfect, just perfect. Not too big and not so small, everything fit like I expected, I even bought argb halo fans and cooler. Just keep in mind how much space you have between your heat sinks and ram on itx board. Fan cooler was too big, single fan vs double may fit, I settled for water cooler instead. That was the only issue.
Great case for the price, seems well built and well thought out. Glad to see if it's a normal ATX power supply. Also nice to see that the fans have proper speed control with standard connectors and aren't those cheap molex connector ones that run at 100% speed all the time. Air flow seems to be good.It would be nice if it either had a white LED or no LED for the power light, the bright blue power light clashes with whatever color you have set for RGB. At least it can be unplugged from the motherboard though.
