SPECIFICATIONS

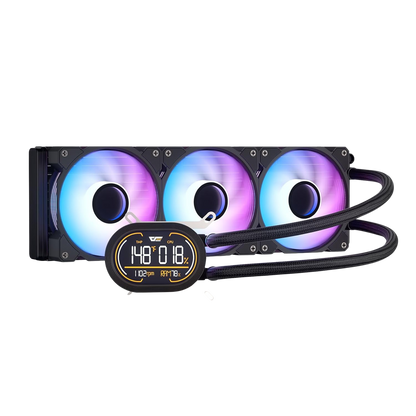

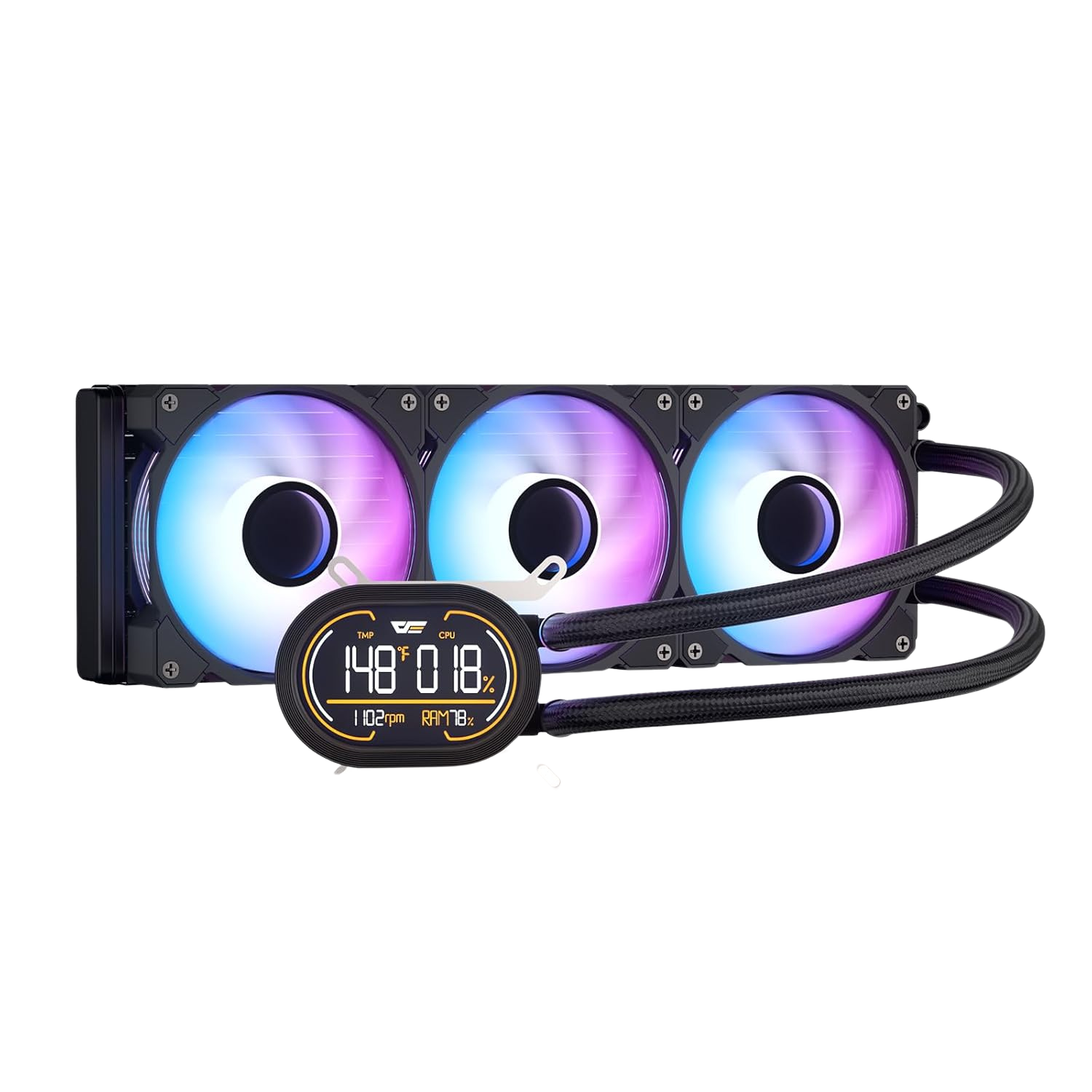

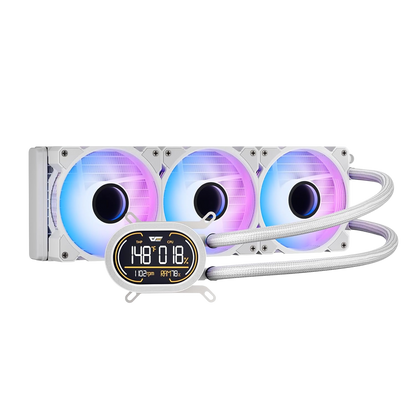

Model
DH360D
Plug
5V 3Pin ARGB Lighting, 4 Pin PWM

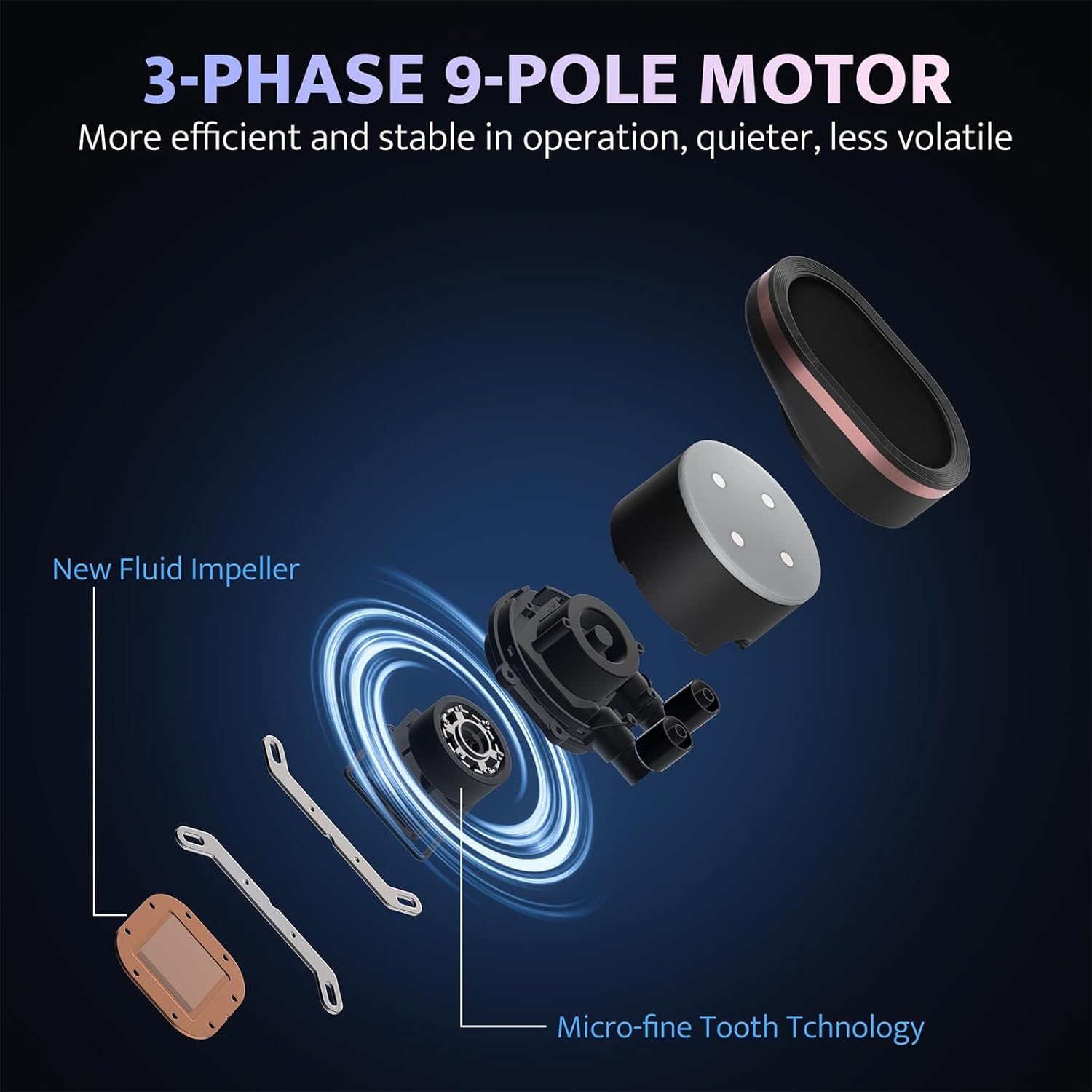

Pump

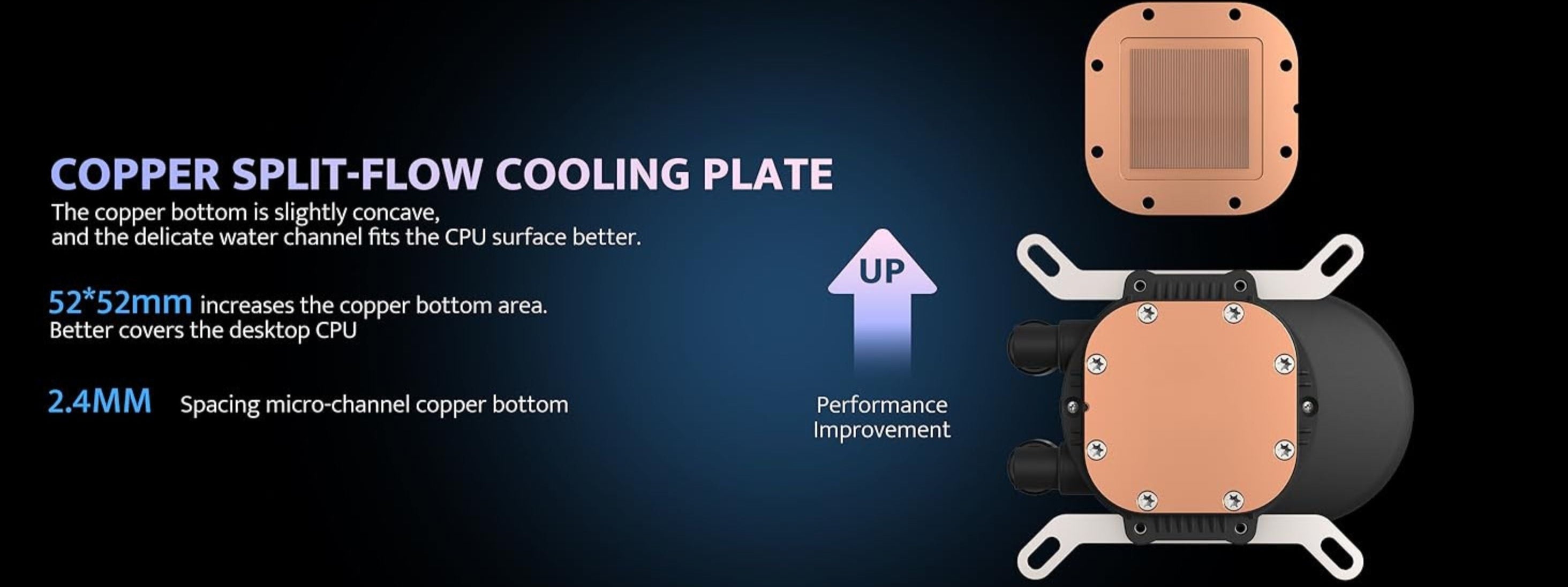

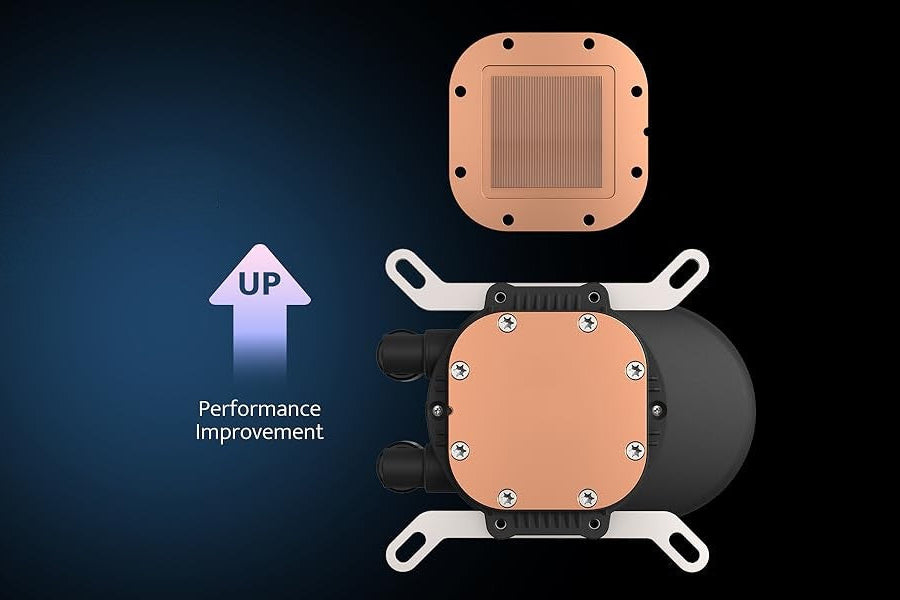

2700±10%RPM (PWM controlled); Current | 12 V DC; Cold Plate: Copper, Micro Skived Fins; Water Pump Rotation Line: 450mm

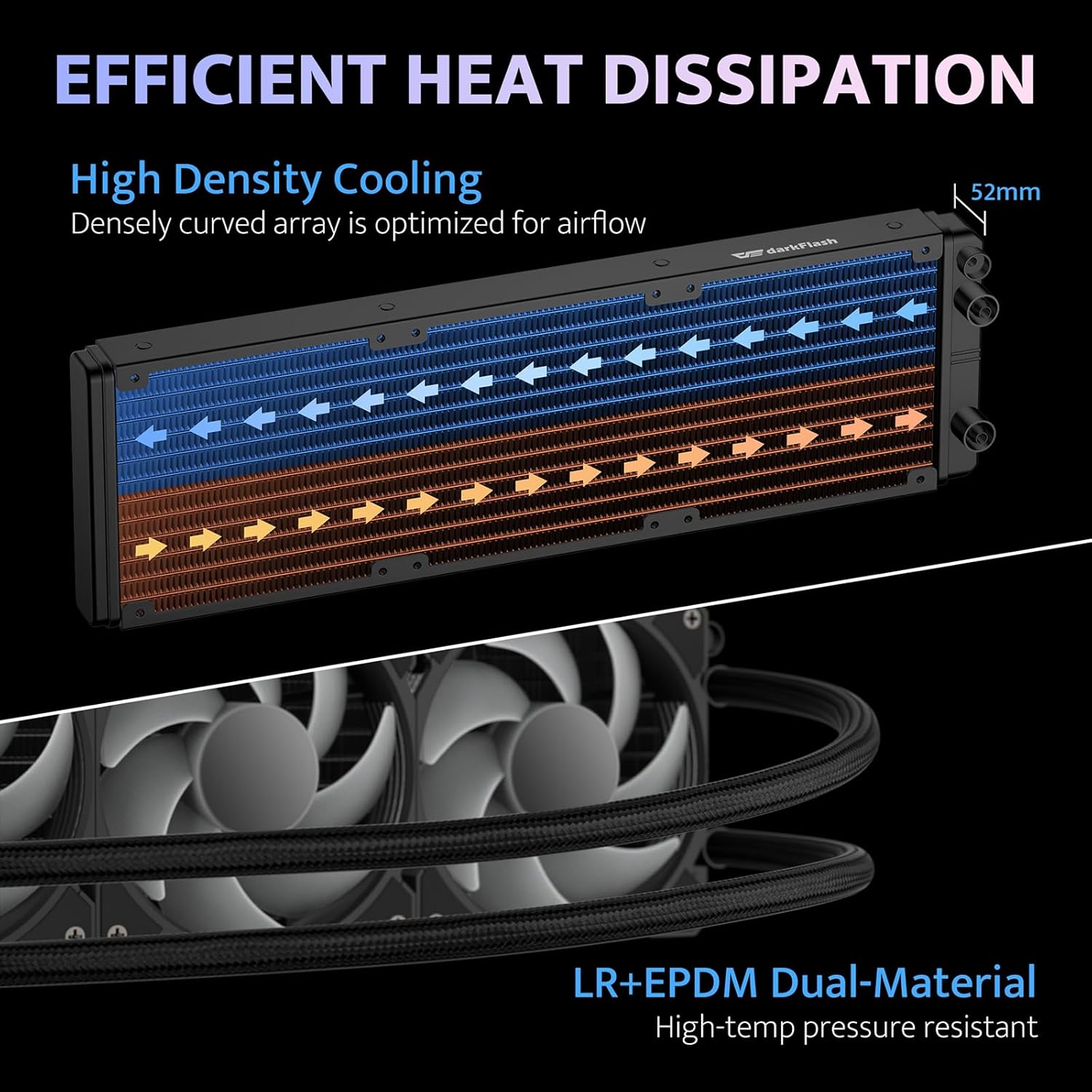

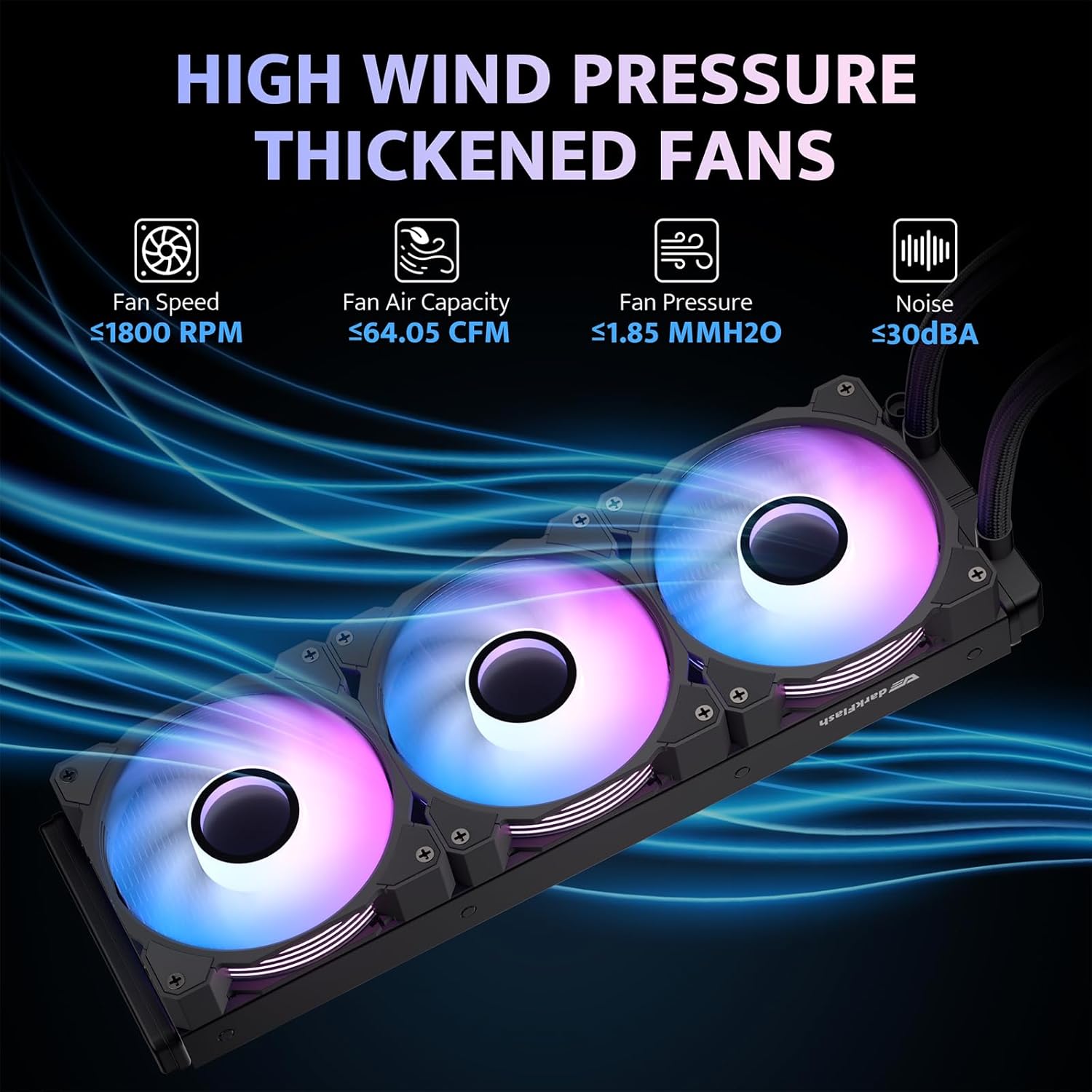

Radiator Fans
Fan: 3x PWM ARGB; Speed: 800-2000+10%RPM; Air Flow: 62.18CFM(Max); Static Pressure: 1.82mmH20 (Max); Noise≤30dB(A)
Compatibility
AMD:FM1/FM2/AM2/AM2+/AM3/AM3+/AM4/AM5; Intel:LGA 1200/115X/1700/1851

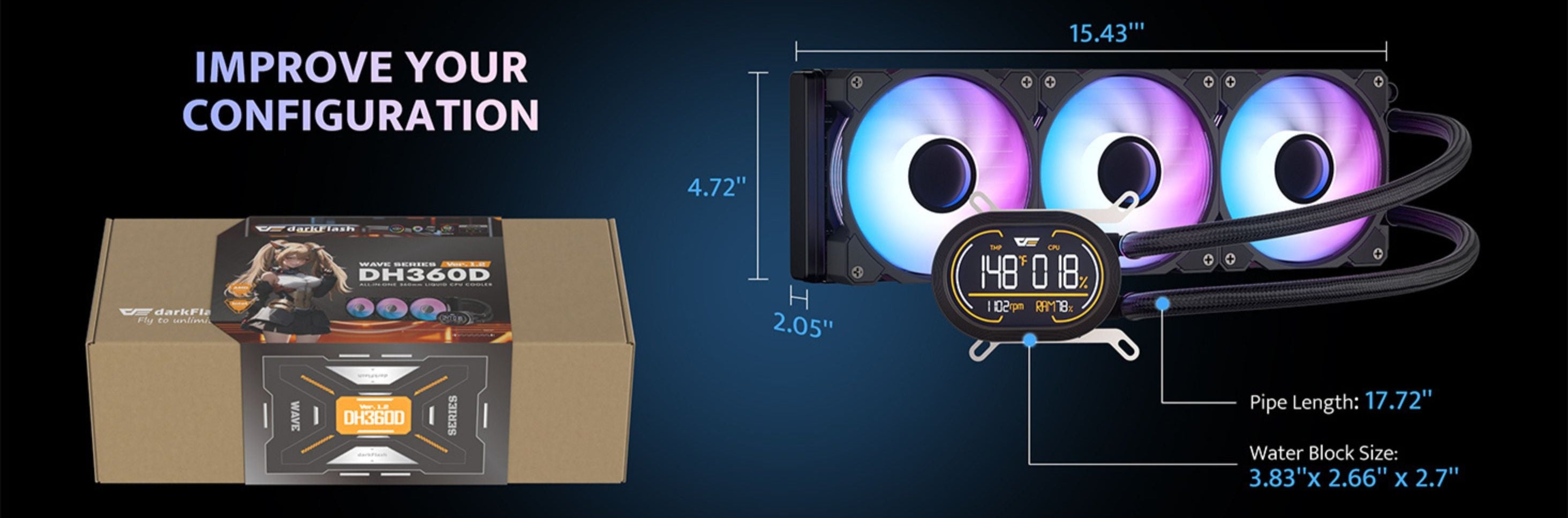

Size & Weight

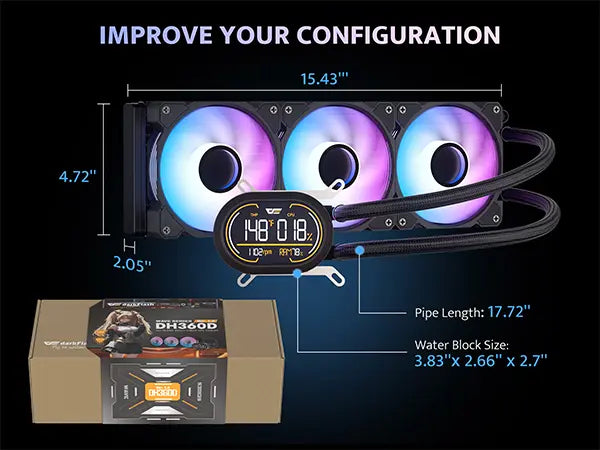

Pump: 3.83 (L) *2.66 (W)*2.7(H) inches, Radiator: 15.43 (L) x 4.72 (W) x 2.05 (H) inches; Weight: 57.14 oz
Power Consumption
1.8W
Fan bearings
Hydro Bearing
Frequently Asked Questions

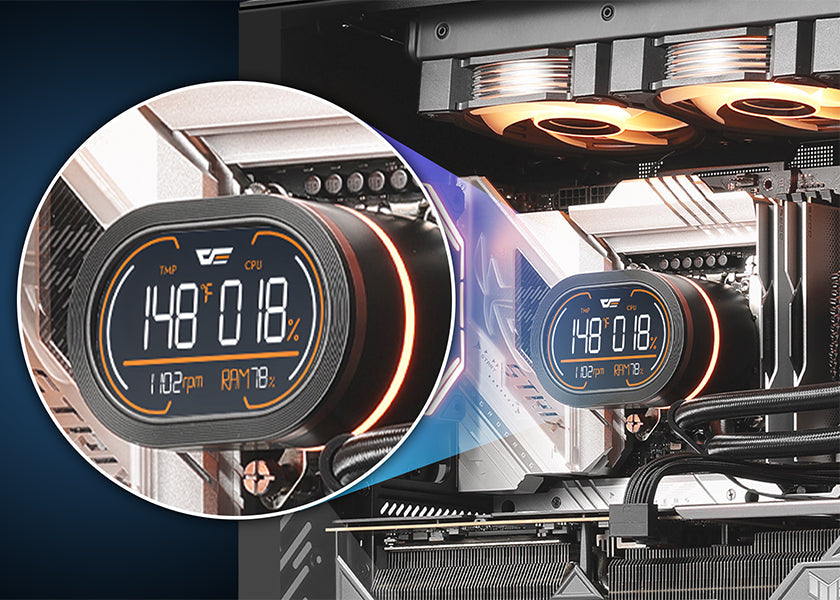

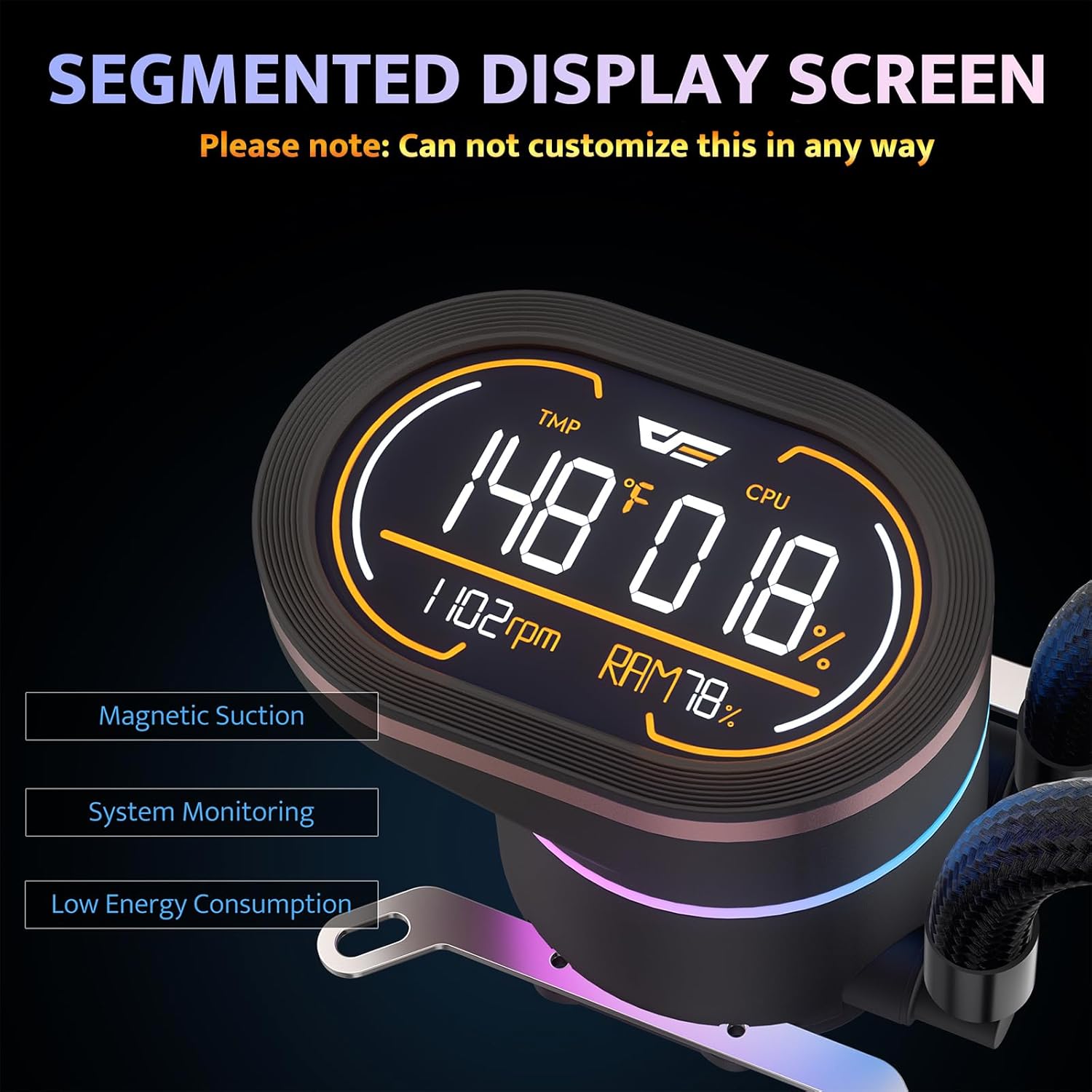

What can the screen display?
What can the screen display?
This is a seven-segment display, only can display, CPU, fan rpm, temperature. Please note: can not customize picture/video/gifts p./gs ect in any way.
How is the display screen mounted?
How is the display screen mounted?
The screen is magnetically attached and supports a 270-degree installation.

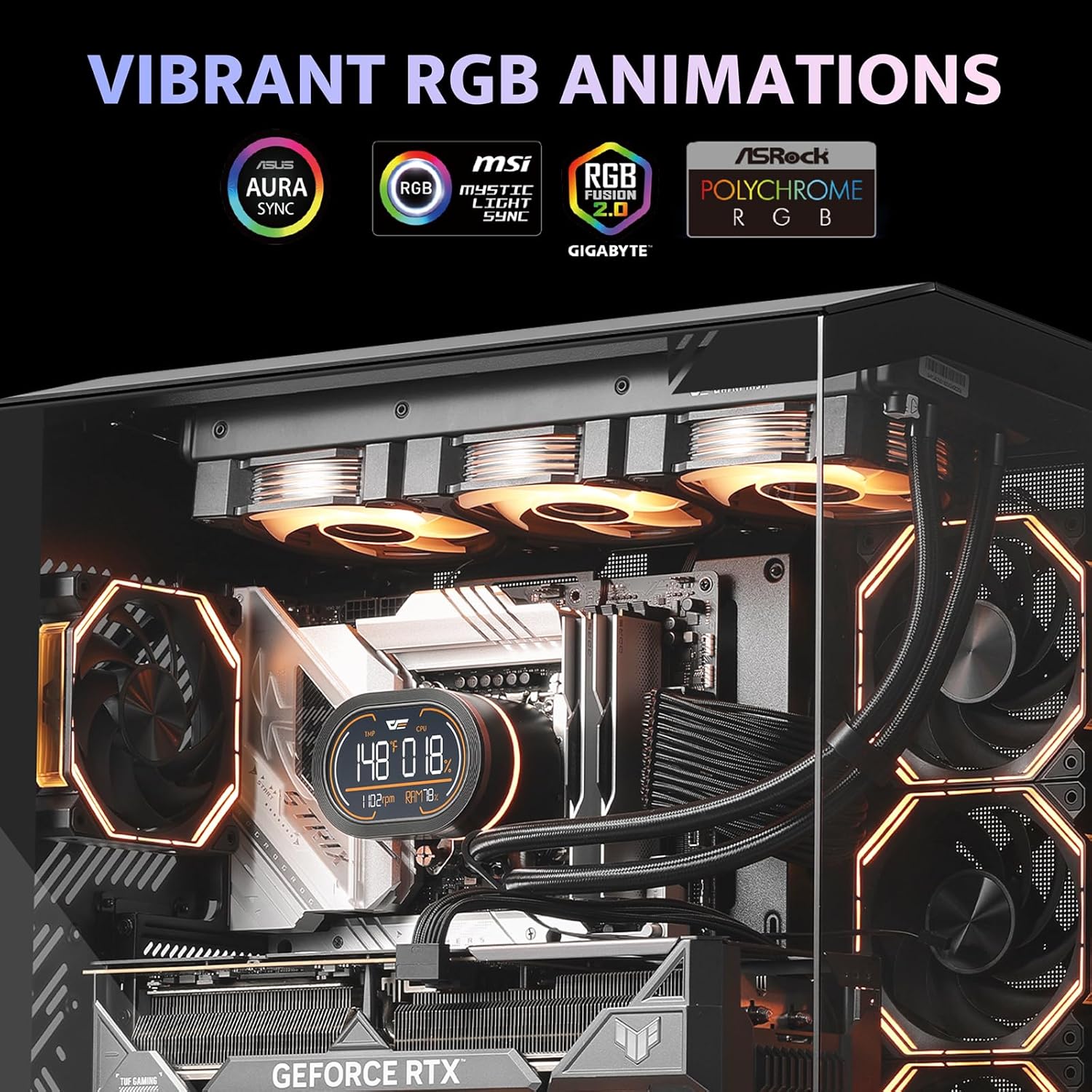

Does the DH360D support ARGB integration with motherboards?
Does the DH360D support ARGB integration with motherboards?
Yes, the DH360D can connect with motherboards that support RGB LED synchronization technology from brands like ASUS, GIGABYTE, and MSI, providing various color effects.
Customer Reviews
i love the product definitely worth buying, easy to install and easy to download the program for the display, however at first i was not able to get the display to function, but after alot of surfing i found that the software to get the display to work needs to be ran as admin for the display to work. once i jumped that hurdle ive had no issues with it at all, definitely works as described, dropped my cpu running temp down to 100 degrees f. while gaming
It's very nicely designed, I think. There are short comings but nothing I would make a fuss over. It's priced fine for what you get. I have no real reason to shoot it down further than 4 stars, and other reviewers have already covered the basics. It gets my seal of approval. I have 27 years experience with PC hardware and building my own PCs, for whatever that is worth. But there are better options.
This does a nice job keeping my CPU cool, and is relatively quiet compared to some liquid cooling set ups. You can feel the heat come out of the case when I’m really going, which is a good sign.My complaints are as follows. The wiring diagram was pretty confusing for the RGB LEDs, and I gave up after I realized a 3 pin rgb hub wouldn’t work (tried and failed). I only have 12v rgb headers on my motherboard so that stinks it runs off 3 pins. Also the daisy chaining was confusing. To get the display to work you need to download the 1.2 software from their website, which I downloaded the wrong one at first and was having no luck getting the display running. After some doing I figured out my mistake and finally got it working. It looks nice once it’s working!All in all this is a decent cpu cooler. I wish I could figure out the RGB but such is life.
Works great for my 9800x3d. Keeps temps below 70c at only 50% pump and fan speed. Very quiet all the way up to 100% pump and fan speeds. The argb lights look great, I'm able to control the lights from my Asus motherboard argb header. The AMD AM5 mounting adapter was really easy to install. The little display screen on the cpu attachment is a really nice touch to see all the critical stats of the cpu and the cooling system.
great for gaming setups - easy install works efficiently and exceptionally well maintains steady temps with high end cpu usage gaming good solid quality product very happy with this product would highly recommend good value for the money
YOU MAY ALSO LIKE
3.5in AIO Display Screen Upgrade Kit LCD Screen
DB330M Micro ATX PC Case

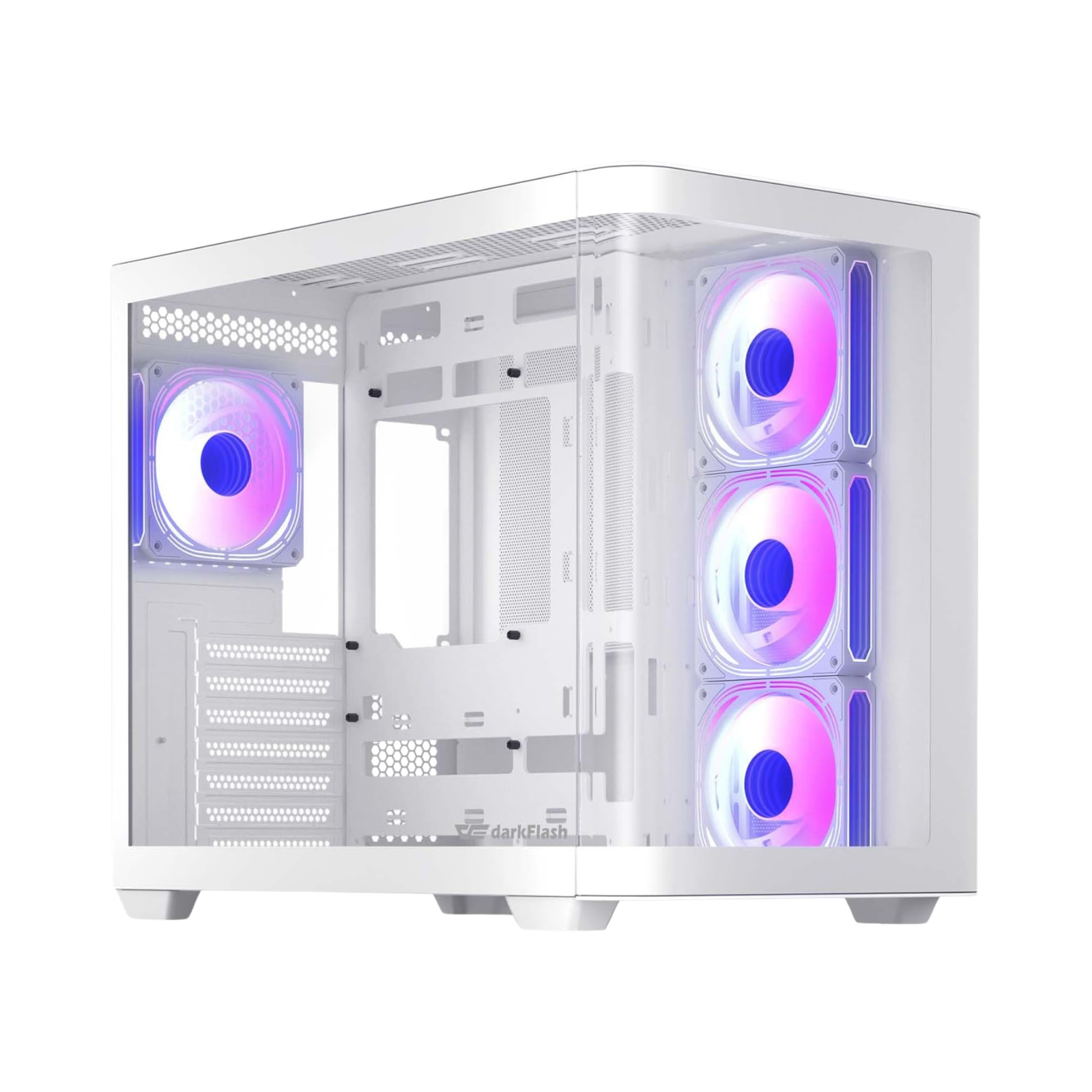

DPW90 ATX Mid-Tower Gaming PC Case
