SPECIFICATIONS

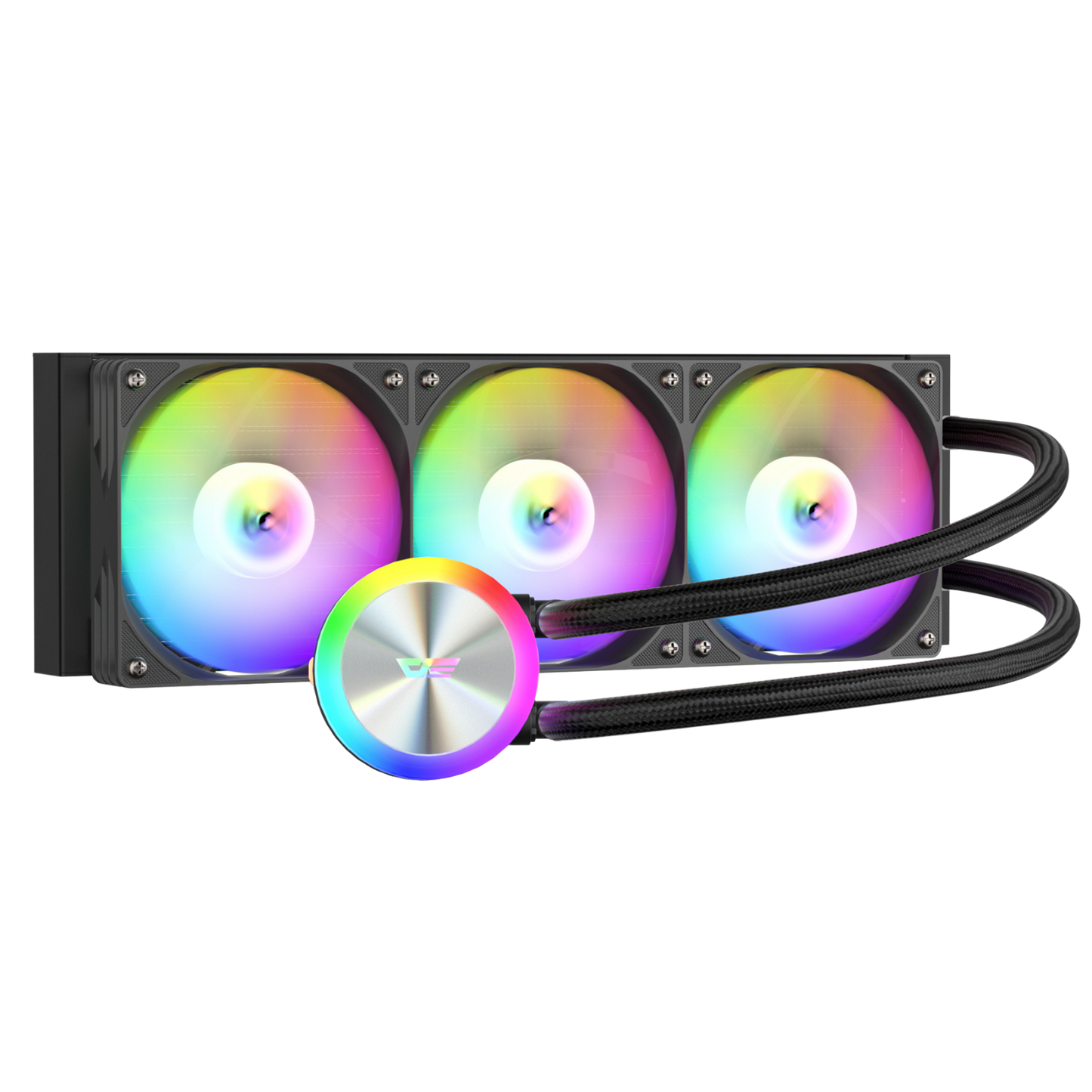

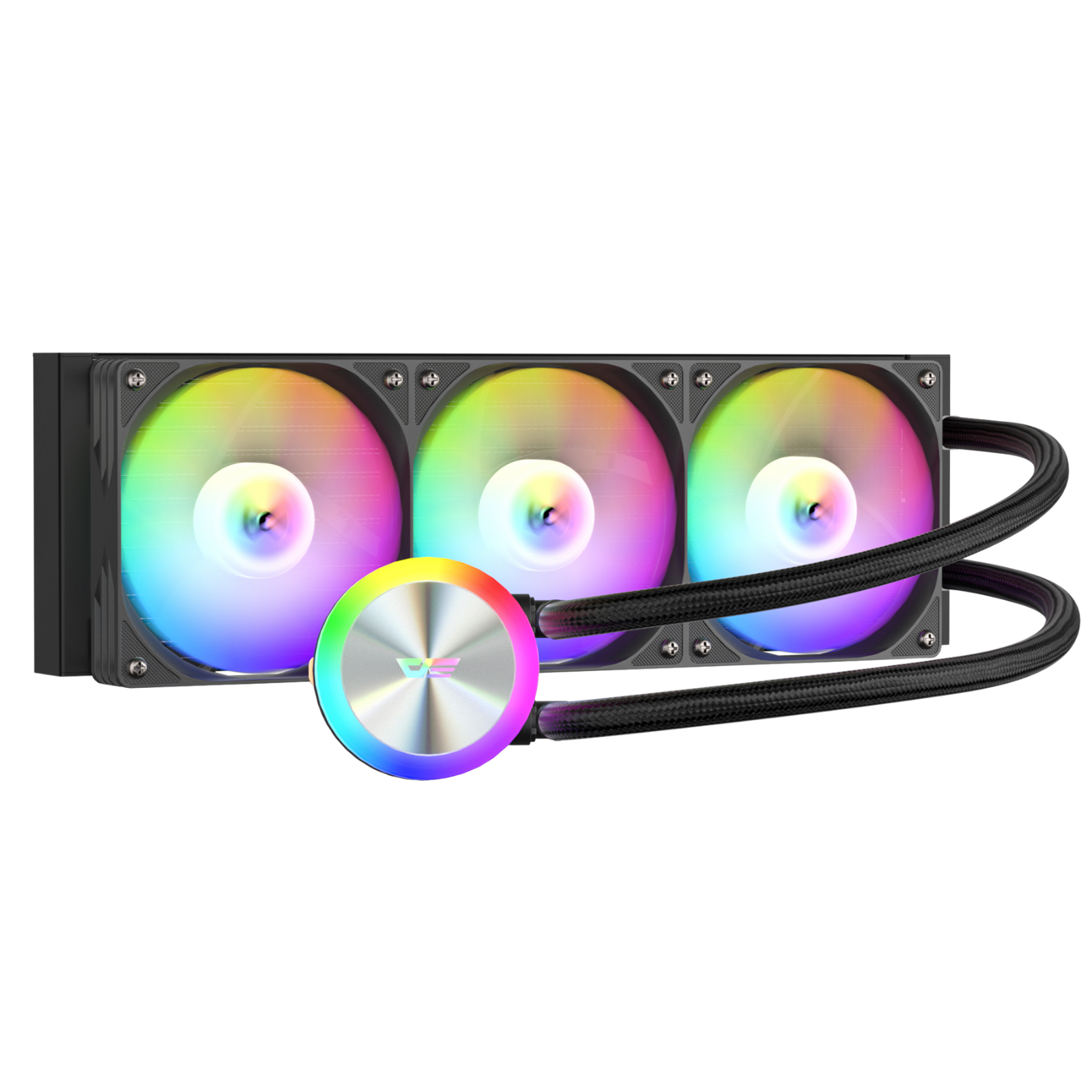

Model
DG360
Plug
5V 3Pin ARGB Lighting, 4 Pin PWM
Pump
Pump: 3000±10%RPM (PWM controlled); Current | 12 V DC; Cold Plate: Copper, Micro Skived Fins; Water Pump Rotation Line: 400mm
Radiator Fans
Fan: 3x PWM ARGB; Speed: 800-1800+10%RPM; Air Flow: 81.5 CFM(Max); Static Pressure: 2.3 mmH20 (Max); Noise≤33dB(A)
Compatibility

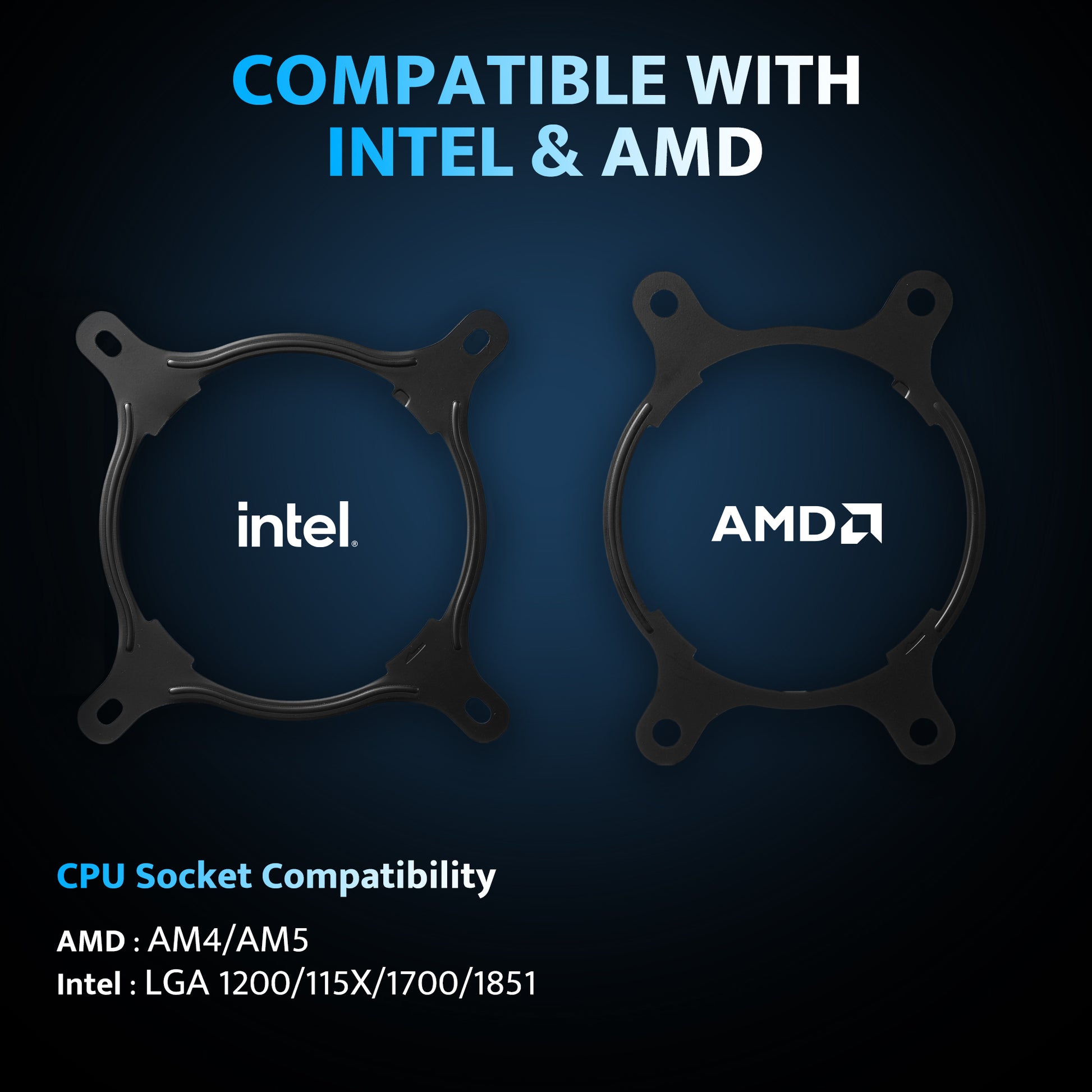

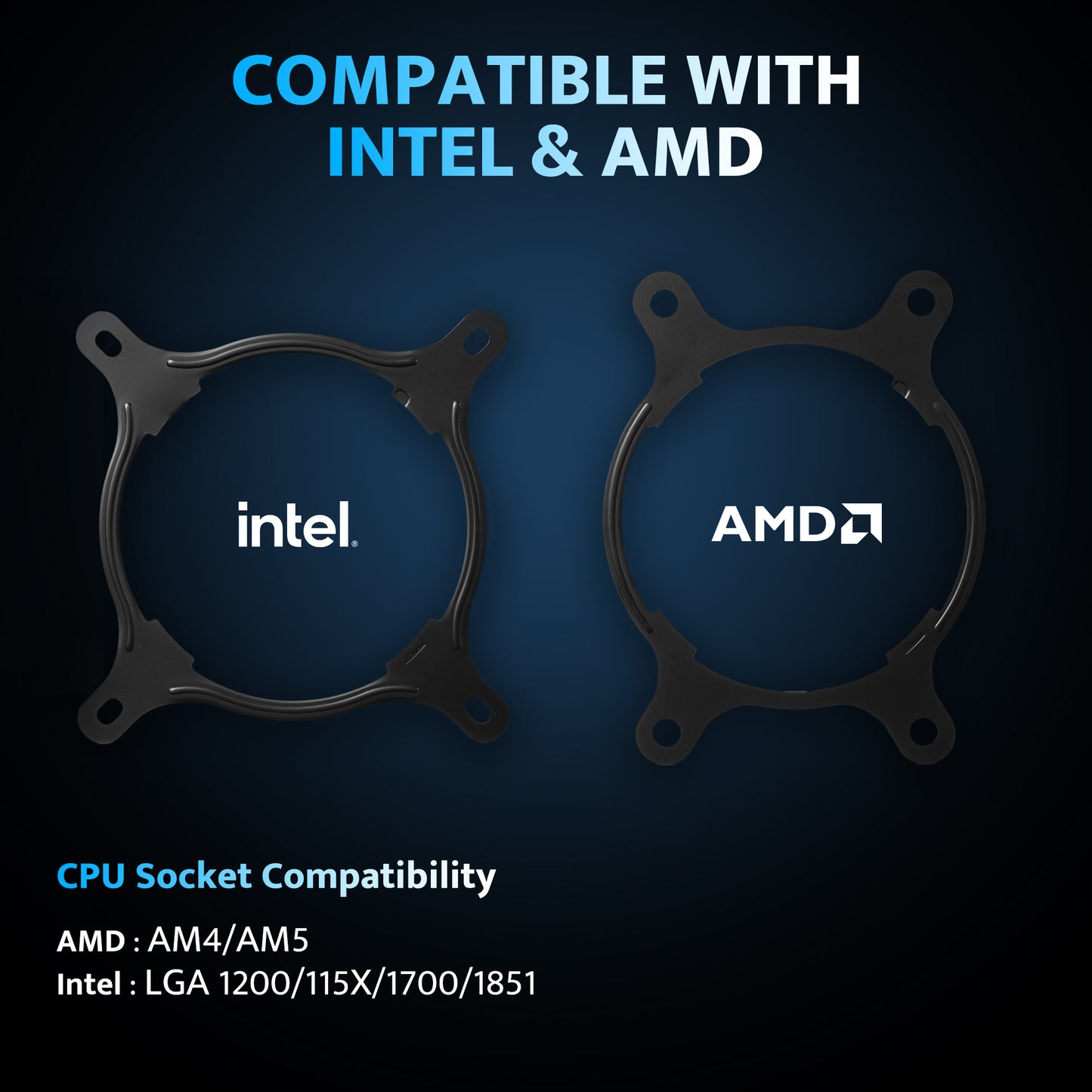

AMD: AM4/AM5; Intel:LGA 1200/115X/1700/1851
Size & Weight

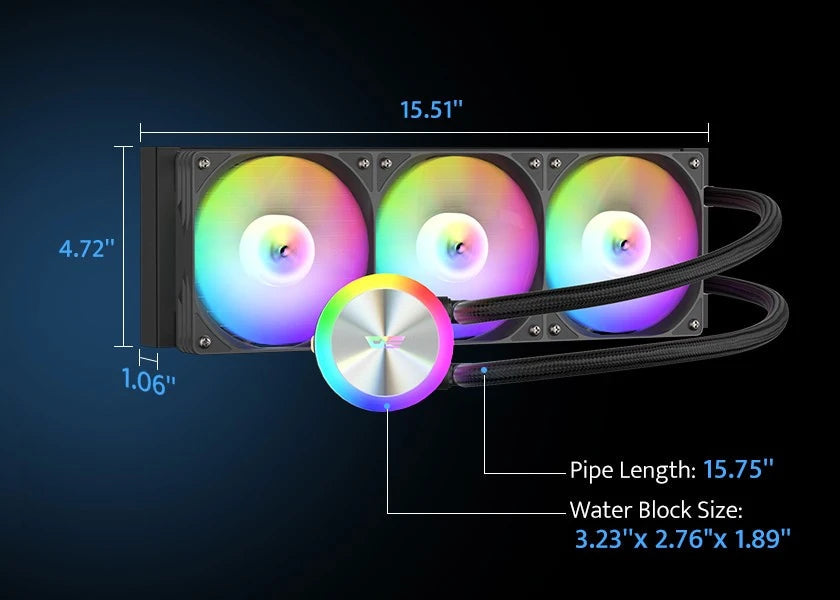

Pump: 3.23 (L) *2.76 (W)*1.89 (H) inches, Radiator: 15.55 (L) x 4.72 (W) x 1.06 (H) inches; Weight: 33.51 oz
Power Consumption
1.8W
Frequently Asked Questions
Is this cooler compatible with Intel LGA 1700 and AMD AM5 sockets?
Is this cooler compatible with Intel LGA 1700 and AMD AM5 sockets?
Yes, it supports Intel LGA 1700/1200/1 15X and AMD AM5/AM4 sockets. All necessary mounting hardware is included.
Does the RGB lighting require a separate controller?
Does the RGB lighting require a separate controller?

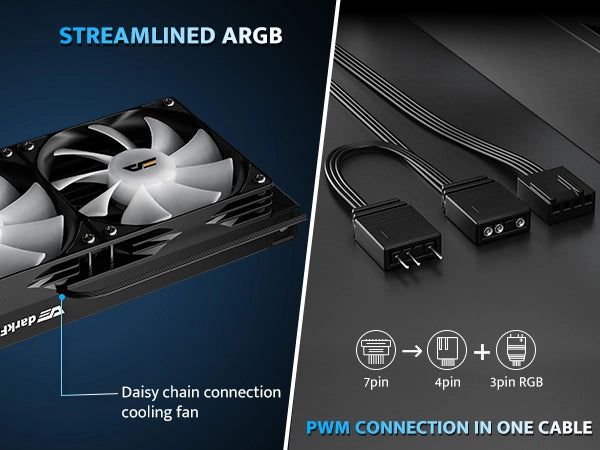

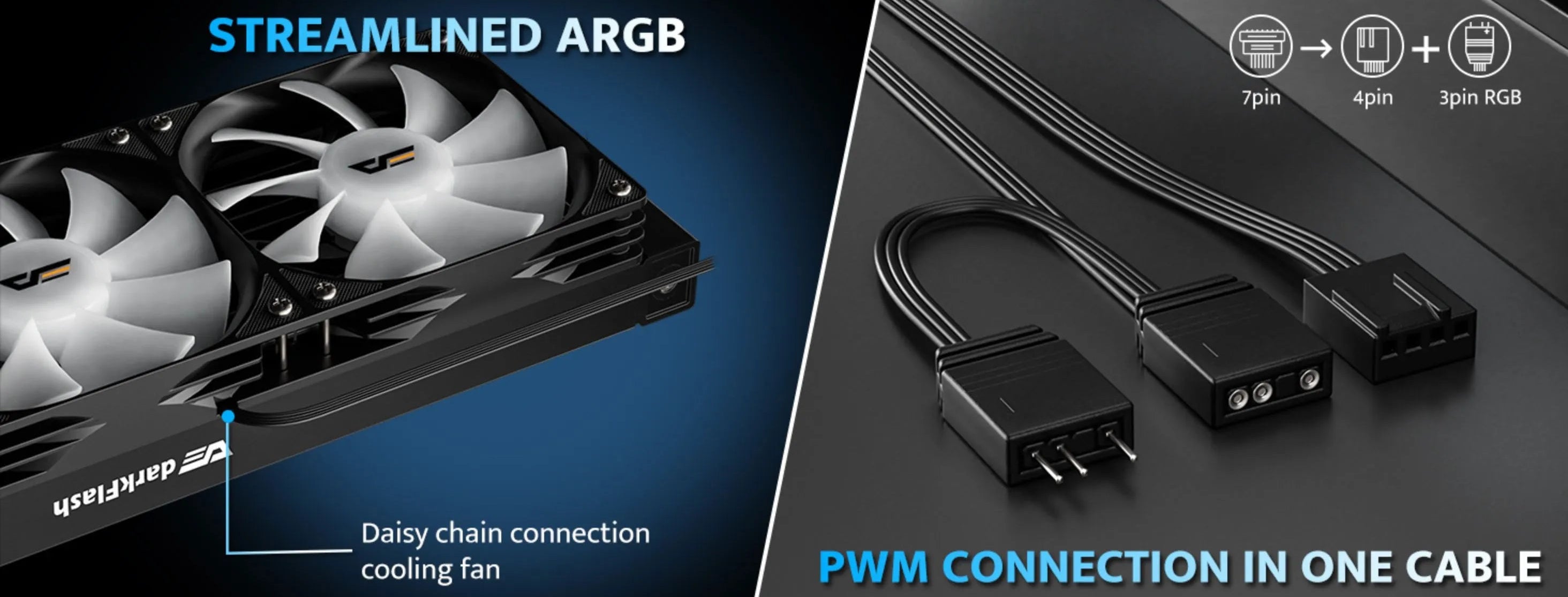

No separate controller is needed if your motherboard has a 5V 3-pin ARGB header. Otherwise, a standalone controller is recommended
Can I control the pump and fan speeds through my motherboard BIOS?
Can I control the pump and fan speeds through my motherboard BIOS?
Yes, both the pump and fans are PWM-controlled and can be managed through BlOS or software depending on your motherboard.
What is the maximum TDP this cooler can handle?
What is the maximum TDP this cooler can handle?
It supports CPUs up to 315W TDP, making it suitable for high-end gaming and workstation builds
Will the RGB sync with ASUS Aura Sync or MSI Mystic Light?
Will the RGB sync with ASUS Aura Sync or MSI Mystic Light?
Yes, it supports 5V 3-pin ARGB sync with popular motherboard software like ASUS Aura Sync, MSI Mystic Light, Gigabyte RGB Fusion, etc
